Hand-on1

pacman::p_load(tidyverse,dplyr)

exam_data <- read_csv("data/Exam_data.csv")

#glimpse(exam_data)
#View(exam_data)

• Year end examination grades of a cohort of primary 3 students from a local school.

• There are a total of seven attributes. Four of them are categorical data type and the other three are in continuous data type.

  • The categorical attributes are: ID, CLASS, GENDER and RACE.

  • The continuous attributes are: MATHS, ENGLISH and SCIENCE.

R Graphics

The Plot

The Code Junk

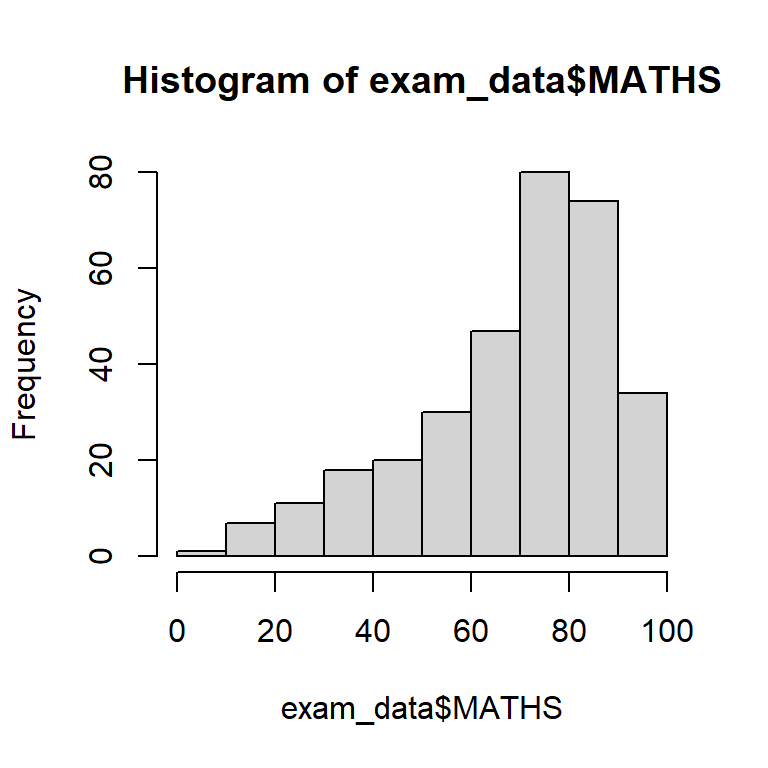

hist(exam_data$MATHS)

ggplot2

The Plot

The Code Junk

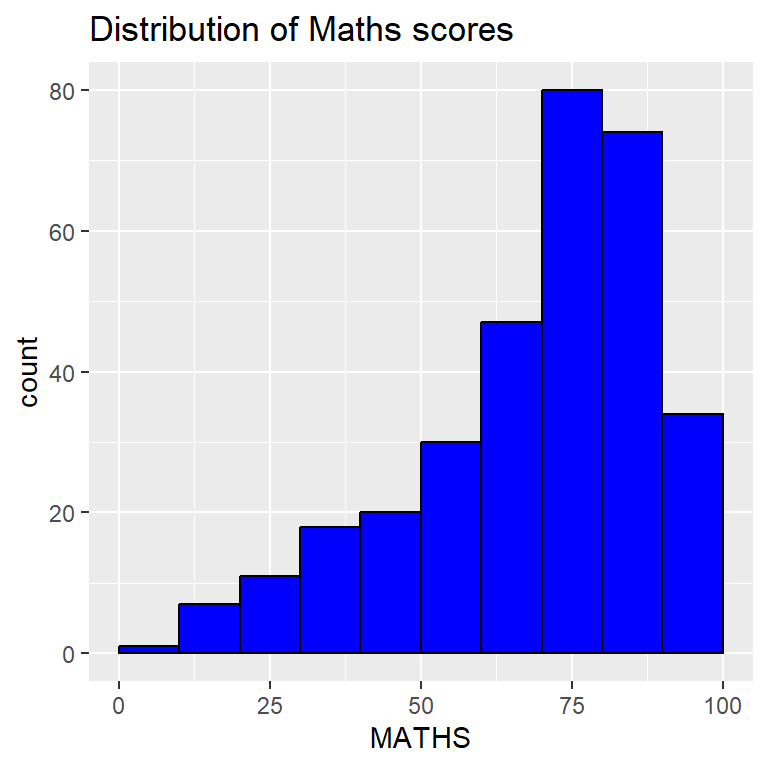

ggplot(data=exam_data, aes(x = MATHS)) +

  geom_histogram(bins=10,

                 boundary = 100,

                 color="black",

                 fill="grey") +

  ggtitle("Distribution of Maths scores")

What is a statistical graphic?

• Grammar of graphics defines the rules of structuring mathematical and aesthetic elements into a meaningful graph.

• Two principles

• Graphics = distinct layers of grammatical elements

• Meaningful plots through aesthetic mapping

Essential Grammatical Elements in ggplot2

A Layered Grammar of Graphics

• Data: The dataset being plotted.
• Aesthetics take attributes of the data and use them to influence visual characteristics, such as position, colours, size, shape, or transparency.
• Geometrics: The visual elements used for our data, such as point, bar or line.
• Facets split the data into subsets to create multiple variations of the same graph (paneling, multiple plots).
• Statistics, statiscal transformations that summarise data (e.g. mean, confidence intervals).
• Coordinate systems define the plane on which data are mapped on the graphic.
• Themes modify all non-data components of a plot, such as main title, sub-title, y-aixs title, or legend background.

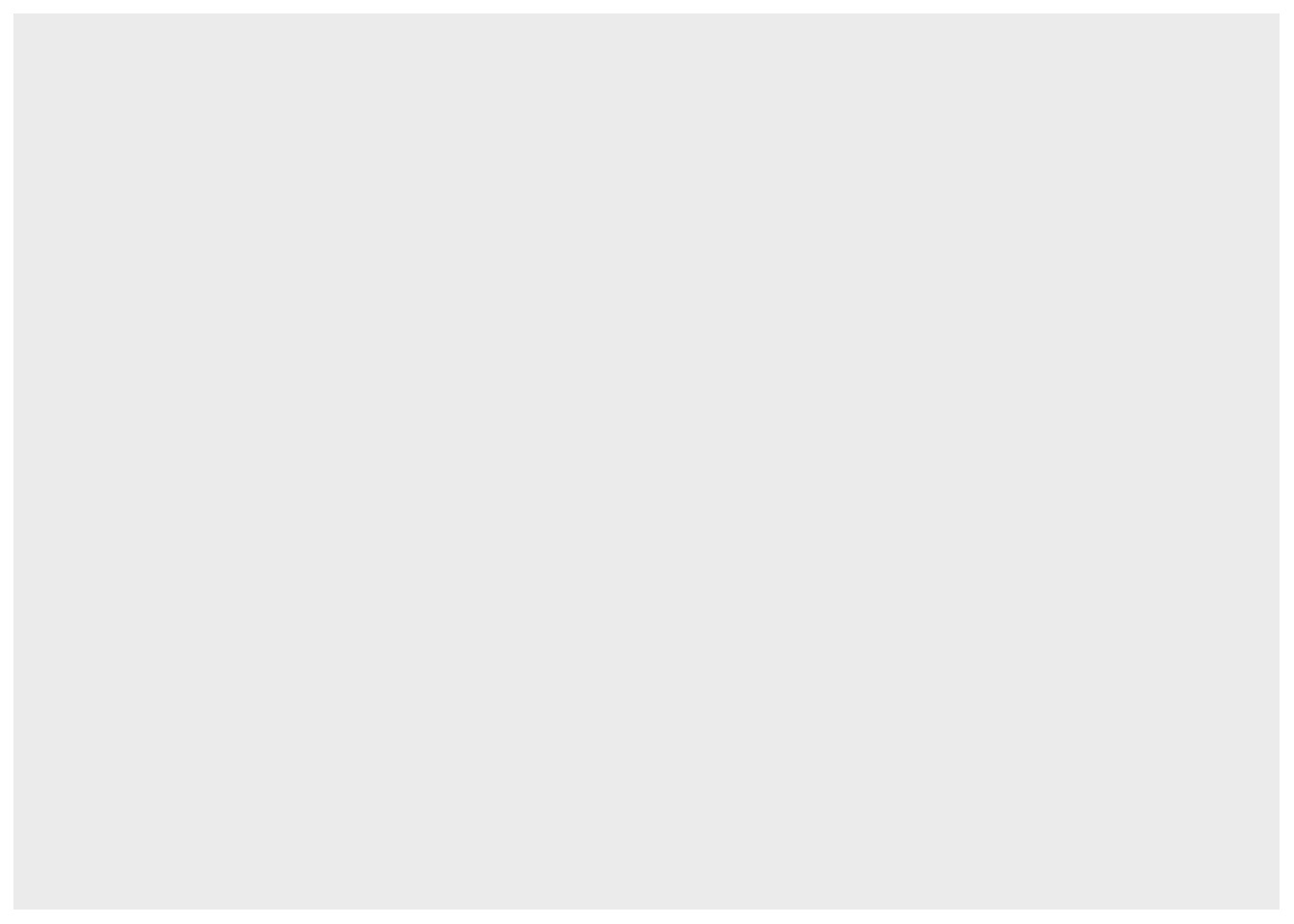

ggplot(data=exam_data)

• Notice that a blank canvas appears.

• ggplot() initializes a ggplot object.

• The data argument defines the dataset to be used for plotting.

• If the dataset is not already a data.frame, it will be converted to one by `fortify()

Essential Grammatical Elements in ggplot2

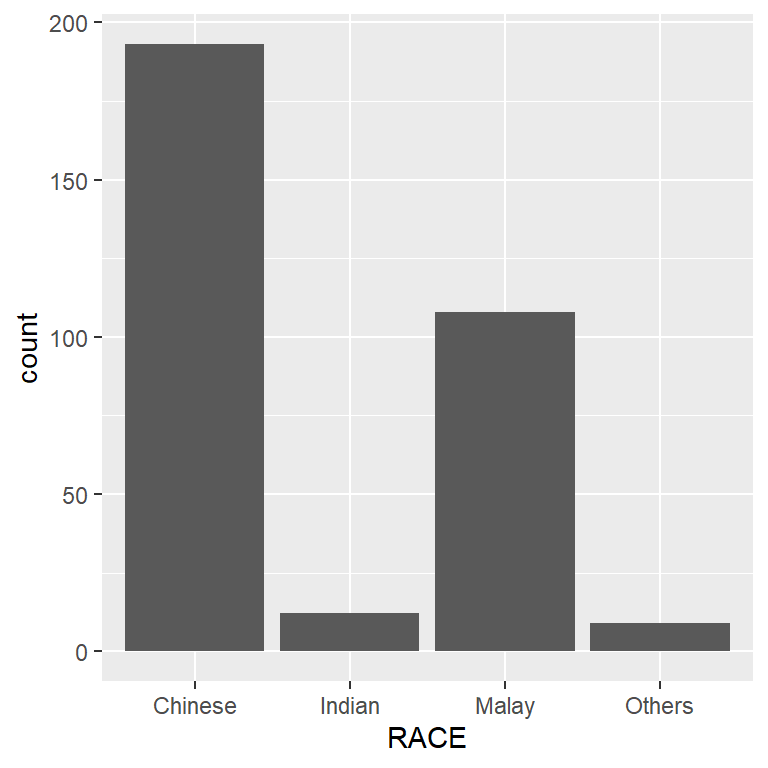

Geometric Objects: [geom_bar]

PLot

Code

ggplot(data=exam_data,
       aes(x=RACE)) +
  geom_bar()

Geometric Objects: geom_dotplot

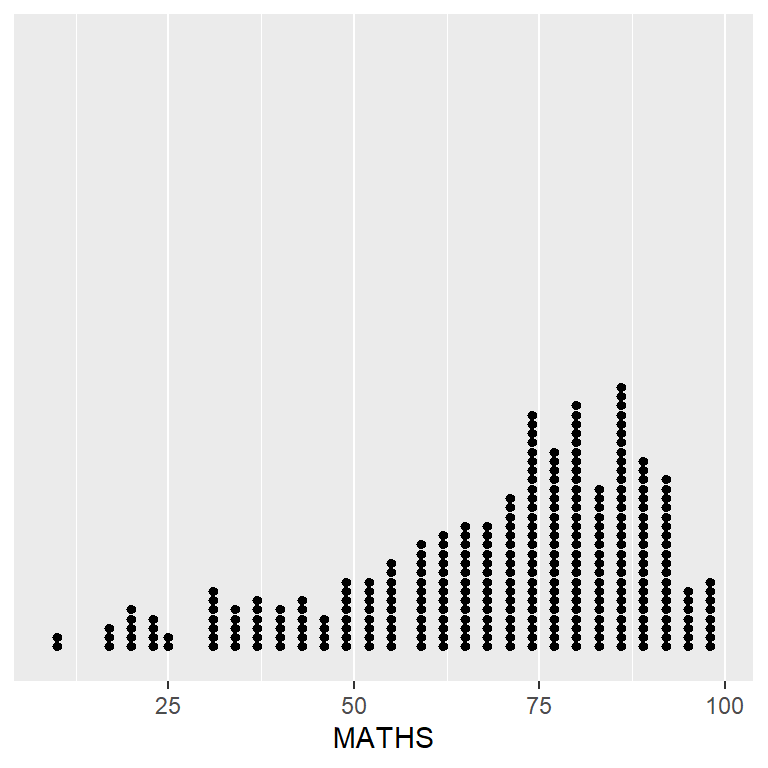

In a dot plot, the width of a dot corresponds to the bin width (or maximum width, depending on the binning algorithm), and dots are stacked, with each dot representing one observation.

The code chunk below performs the following two steps:

• scale_y_continuous() is used to turn off the y-axis, and
• binwidth argument is used to change the binwidth to 2.5.

Plot

Code

ggplot(data=exam_data, aes(x = MATHS)) +
  geom_dotplot(binwidth=2.5, dotsize = 0.5) +
  scale_y_continuous(NULL, breaks = NULL)

Geometric Objects: geom_histogram()

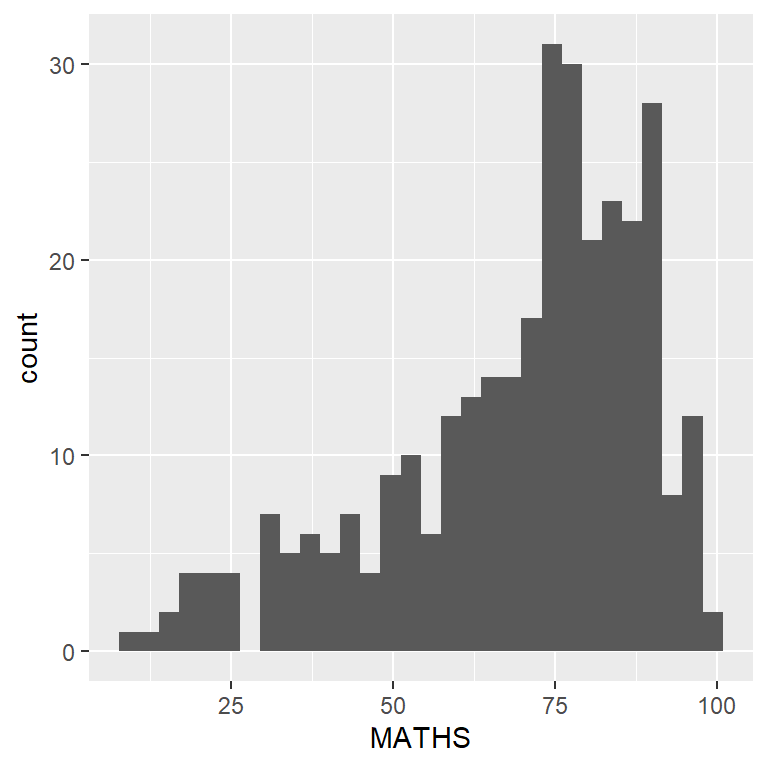

In the code chunk below, [geom_histogram()] is used to create a simple histogram by using values in MATHS field of exam_data.

Note

Note that the default bin is 30.

Plot

Code

ggplot(data=exam_data,
       aes(x = MATHS)) +
  geom_histogram()

Modifying a geometric object by changing geom()

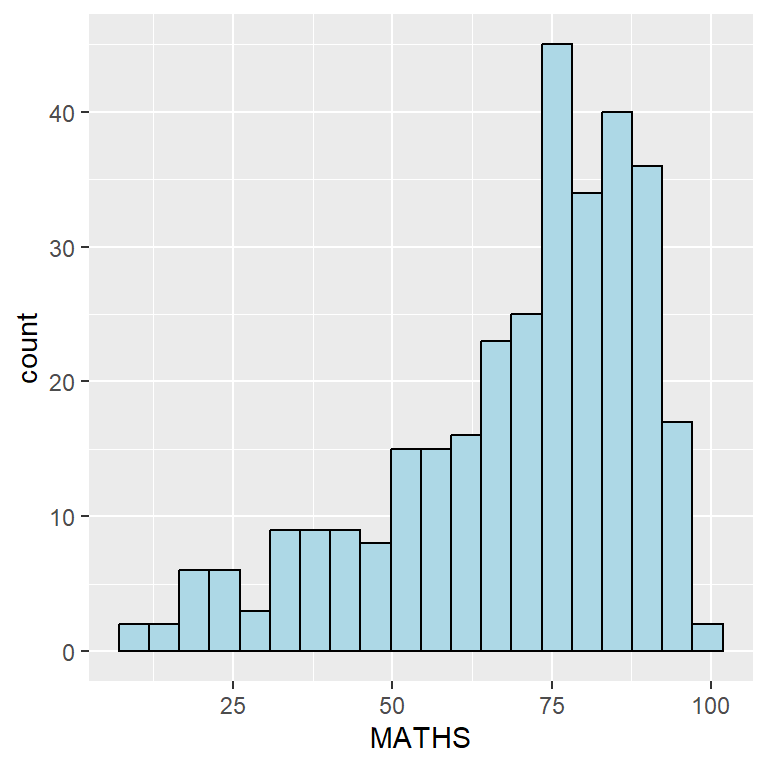

In the code chunk below,

• bins argument is used to change the number of bins to 20,
• fill argument is used to shade the histogram with light blue color, and
• color argument is used to change the outline colour of the bars in black

Plot

Code

ggplot(data=exam_data,
       aes(x= MATHS)) +
  geom_histogram(bins=20,
                 color="black",
                 fill="light blue")

Modifying a geometric object by changing aes()

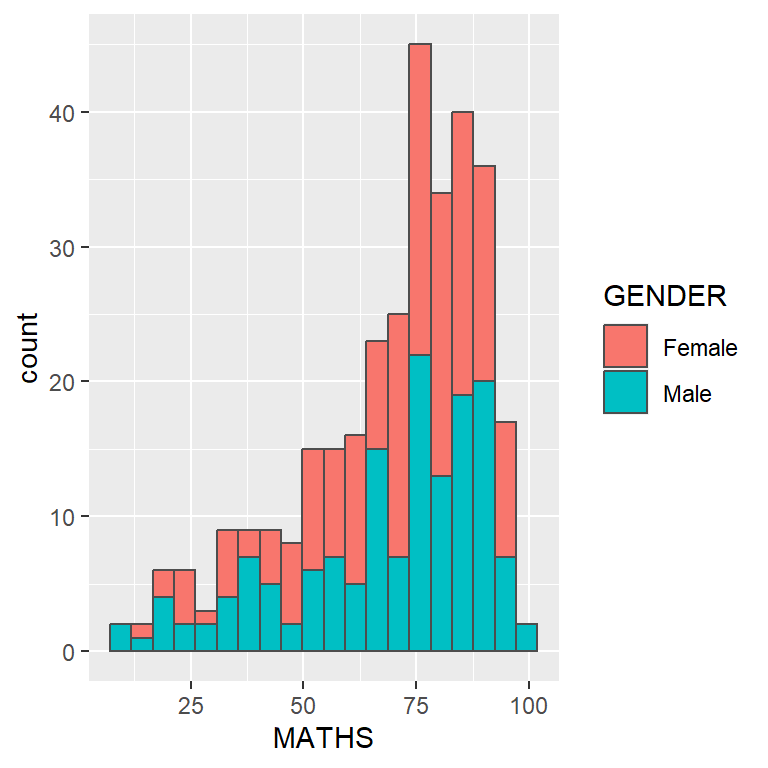

• The code chunk below changes the interior colour of the histogram (i.e. fill) by using sub-group of aesthetic().

Note

This approach can be used to colour, fill and alpha of the geometric.

Plot

Code

ggplot(data=exam_data,
       aes(x= MATHS,
           fill = GENDER)) +
  geom_histogram(bins=20,
                 color="grey30")

Geometric Objects: geom-density

[geom-density()]computes and plots kernel density estimate, which is a smoothed version of the histogram.

It is a useful alternative to the histogram for continuous data that comes from an underlying smooth distribution.

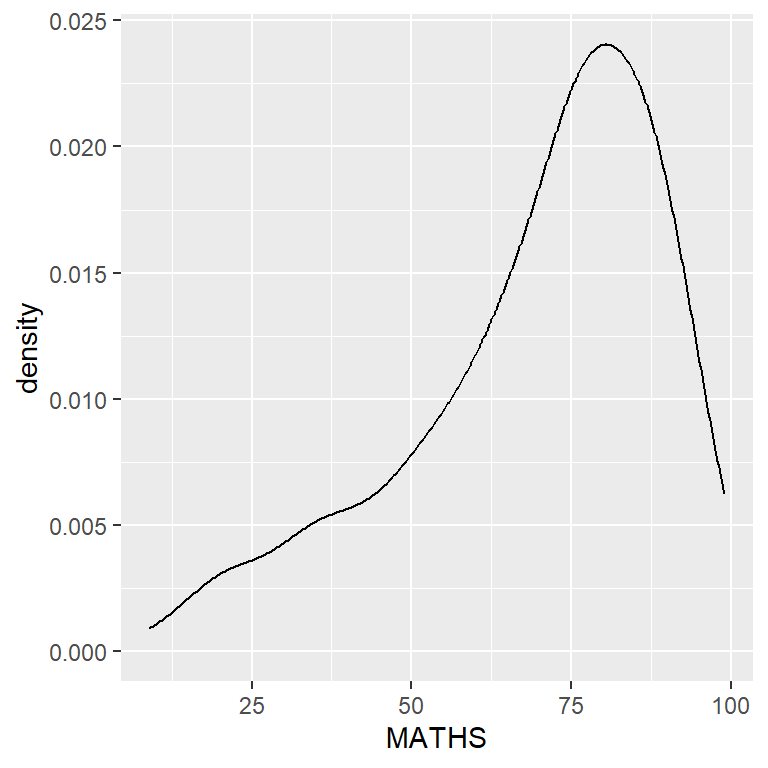

The code below plots the distribution of Maths scores in a kernel density estimate plot.

Plot

Code

ggplot(data=exam_data,
       aes(x = MATHS)) +
  geom_density()

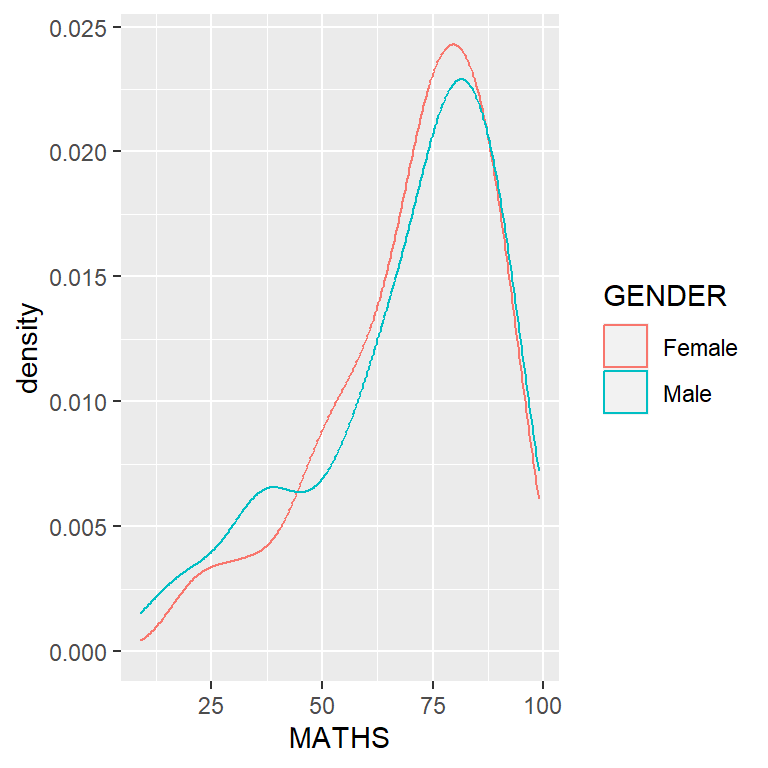

The code chunk below plots two kernel density lines by using colour or fill arguments of aes()

Plot

Code

ggplot(data=exam_data,
       aes(x = MATHS,
           colour = GENDER)) +
  geom_density()

Geometric Objects: geom_boxplot

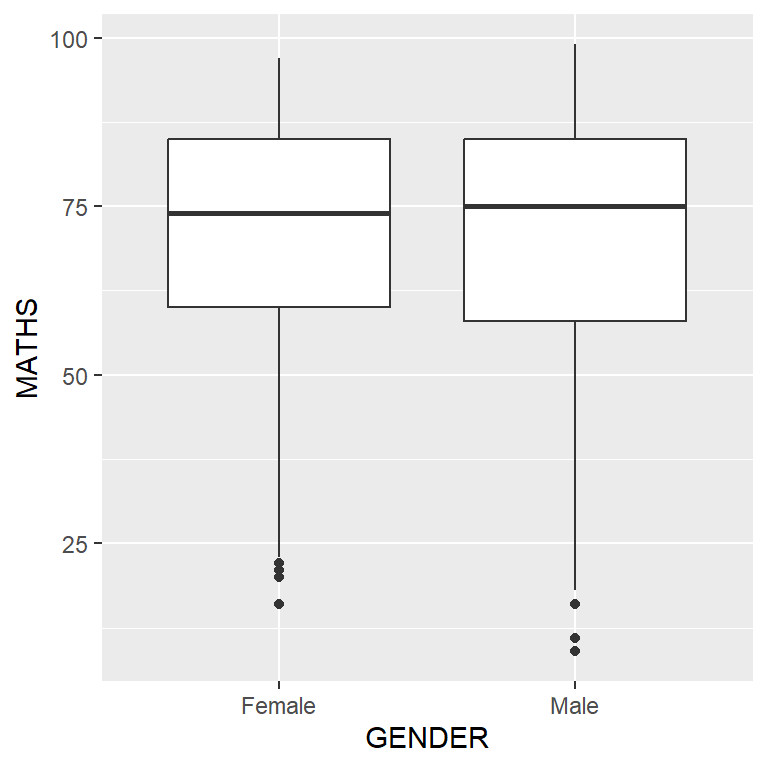

• [geom_boxplot()]displays continuous value list.

Plot

Code

ggplot(data=exam_data,
       aes(y = MATHS,
           x= GENDER)) +
  geom_boxplot()

Notches are used in box plots to help visually assess whether the medians of distributions differ. If the notches do not overlap, this is evidence that the medians are different.

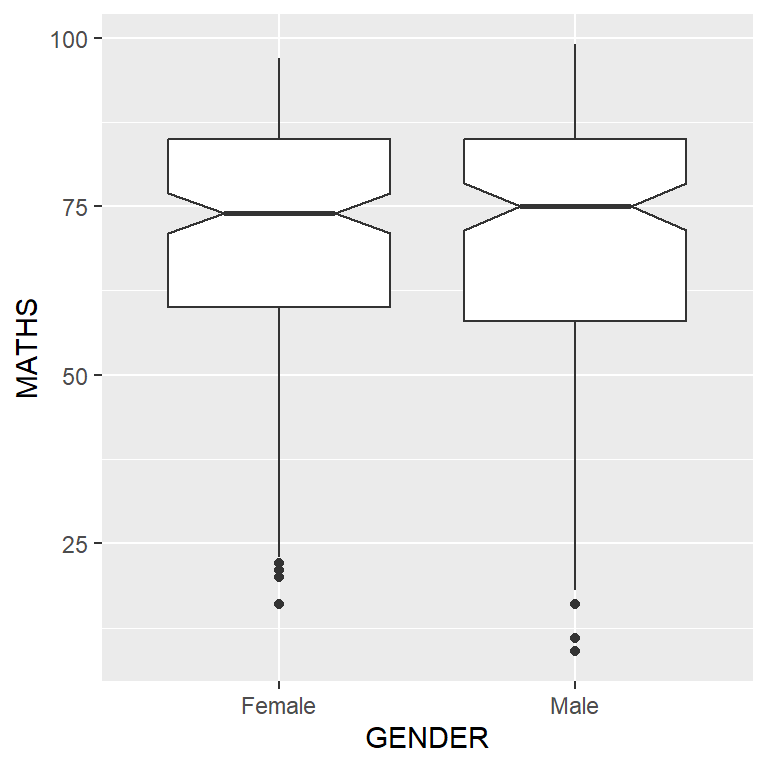

The code chunk below plots the distribution of Maths scores by gender in notched plot instead of boxplot.

Plot

Code

ggplot(data=exam_data,
       aes(y = MATHS,
           x= GENDER)) +
  geom_boxplot(notch=TRUE)

geom objects can be combined

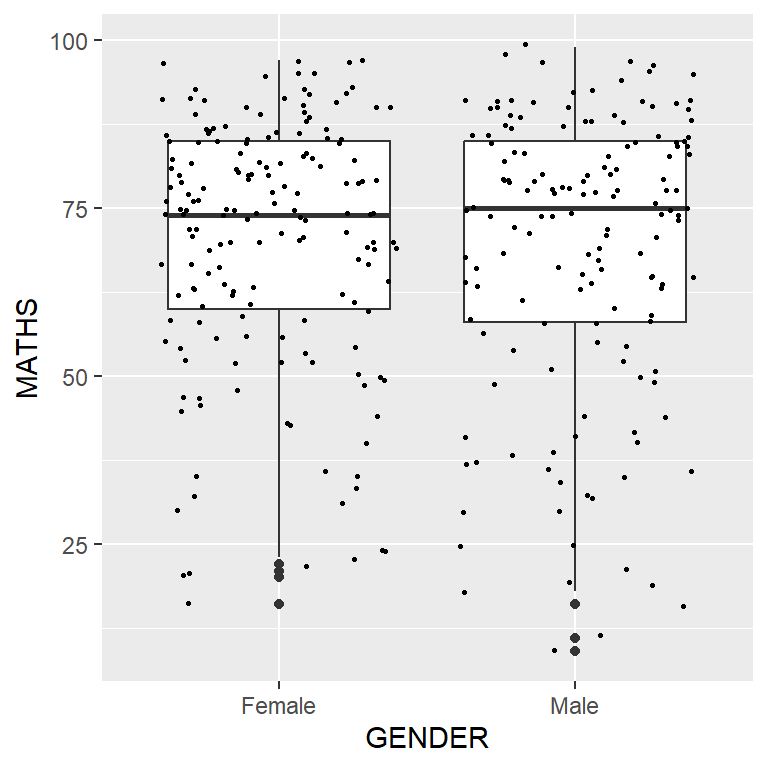

The code chunk below plots the data points on the boxplots by using both geom_boxplot() and geom_point().

Plot

Code

ggplot(data=exam_data,
       aes(y = MATHS,
           x= GENDER)) +
  geom_boxplot() +
  geom_point(position="jitter",
             size = 0.5)

Geometric Objects: geom_violin

[geom_violin] is designed for creating violin plot. Violin plots are a way of comparing multiple data distributions. With ordinary density curves, it is difficult to compare more than just a few distributions because the lines visually interfere with each other. With a violin plot, it’s easier to compare several distributions since they’re placed side by side.

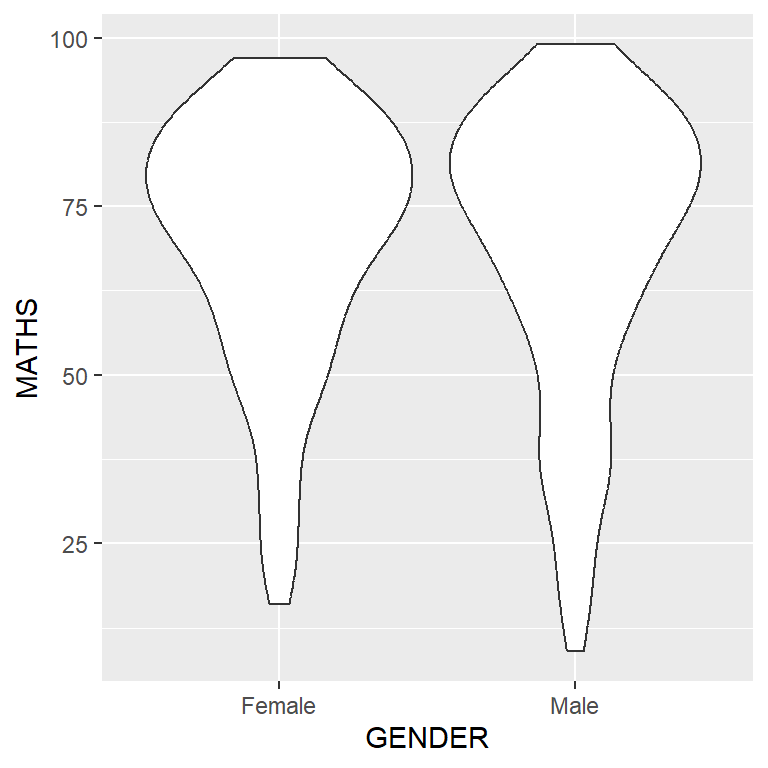

The code below plot the distribution of Maths score by gender in violin plot.

Plot

Code

ggplot(data=exam_data,
       aes(y = MATHS,
           x= GENDER)) +
  geom_violin()

Geometric Objects: geom_violin() and geom_boxplot()

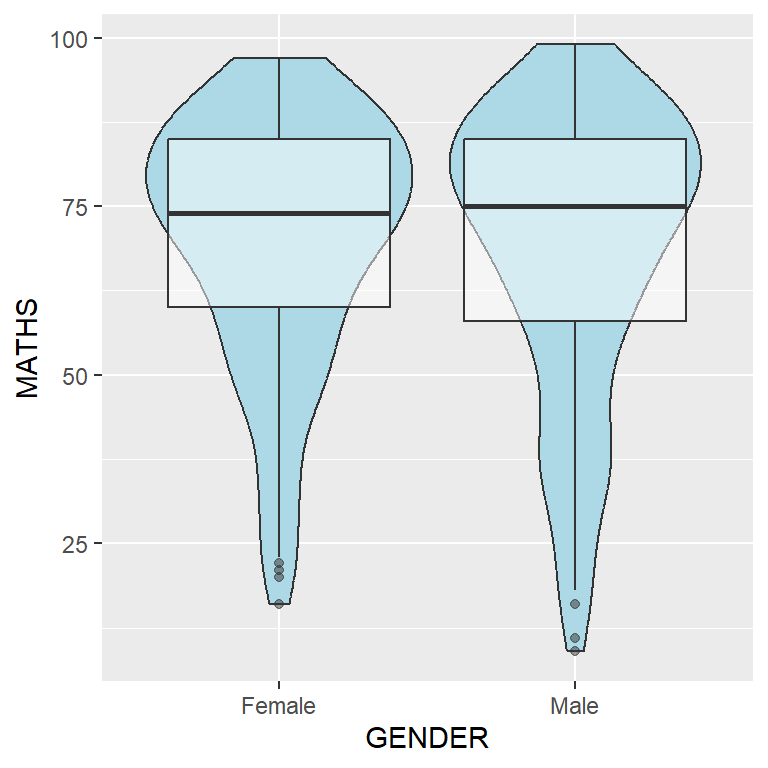

The code chunk below combined a violin plot and a boxplot to show the distribution of Maths scores by gender.

Plot

Code

ggplot(data=exam_data,
       aes(y = MATHS,
           x= GENDER)) +
  geom_violin(fill="light blue") +
  geom_boxplot(alpha=0.5)

Geometric Objects: geom_point()

• [geom_point()] is especially useful for creating scatterplot.
• The code chunk below plots a scatterplot showing the Maths and English grades of pupils by using geom_point().

Plot

Code

ggplot(data=exam_data,
       aes(x= MATHS,
           y=ENGLISH)) +
  geom_point()

Statistics, stat

• The Statistics functions statistically transform data, usually as some form of summary. For example:
  • frequency of values of a variable (bar graph)
  • a mean
  • a confidence limit
• There are two ways to use these functions:
  • add a stat_() function and override the default geom, or
  • add a geom_() function and override the default stat.

Working with stat - the stat_summary() method

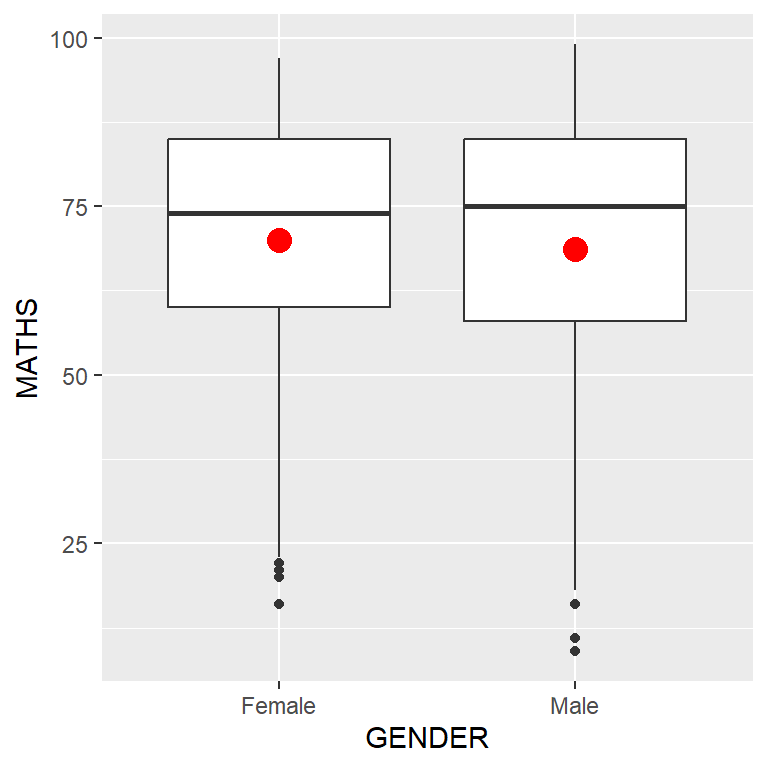

The code chunk below adds mean values by using [stat_summary()] function and overriding the default geom.

Plot

Code

ggplot(data=exam_data,
       aes(y = MATHS, x= GENDER)) +
  geom_boxplot() +
  stat_summary(geom = "point",
               fun.y="mean",
               colour ="red",
               size=4)

Working with stat - the geom() method

The code chunk below adding mean values by using geom_() function and overriding the default stat.

Plot

Code

ggplot(data=exam_data,
       aes(y = MATHS, x= GENDER)) +
  geom_boxplot() +
  geom_point(stat="summary",
             fun.y="mean",
             colour ="red",
             size=4)

How to add a best fit curve on a scatterplot?

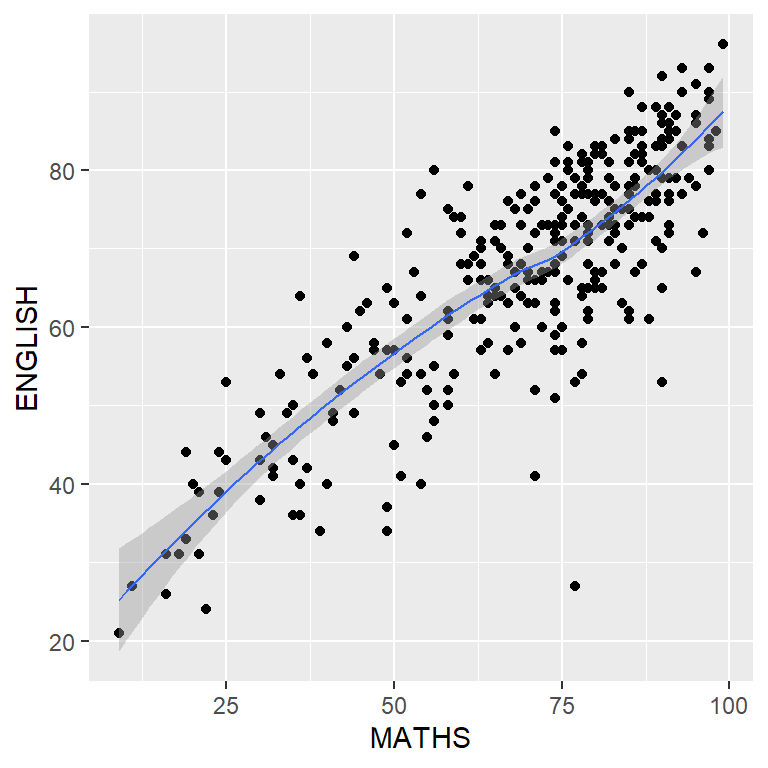

In the code chunk below, [geom_smooth()] is used to plot a best fit curve on the scatterplot.

• The default method used is loess.

Plot

Code

ggplot(data=exam_data,
       aes(x= MATHS, y=ENGLISH)) +
  geom_point() +
  geom_smooth(size=0.5)

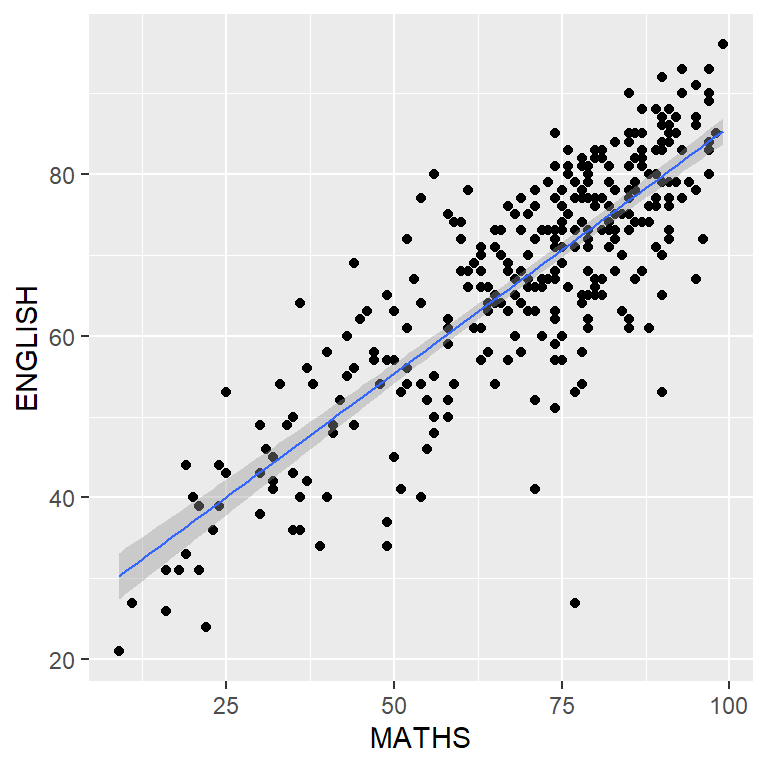

The default smoothing method can be overridden as shown below.

Plot

Code

ggplot(data=exam_data,
       aes(x= MATHS,
           y=ENGLISH)) +
  geom_point() +
  geom_smooth(method=lm,
              linewidth=0.5)

Facets

• Facetting generates small multiples (sometimes also called trellis plot), each displaying a different subset of the data.

• Facets are an alternative to aesthetics for displaying additional discrete variables.

• ggplot2 supports two types of factes, namely: facet_grid() and facet_wrap.

facet_wrap()

• [facet_wrap] wraps a 1d sequence of panels into 2d.

• This is generally a better use of screen space than facet_grid because most displays are roughly rectangular.

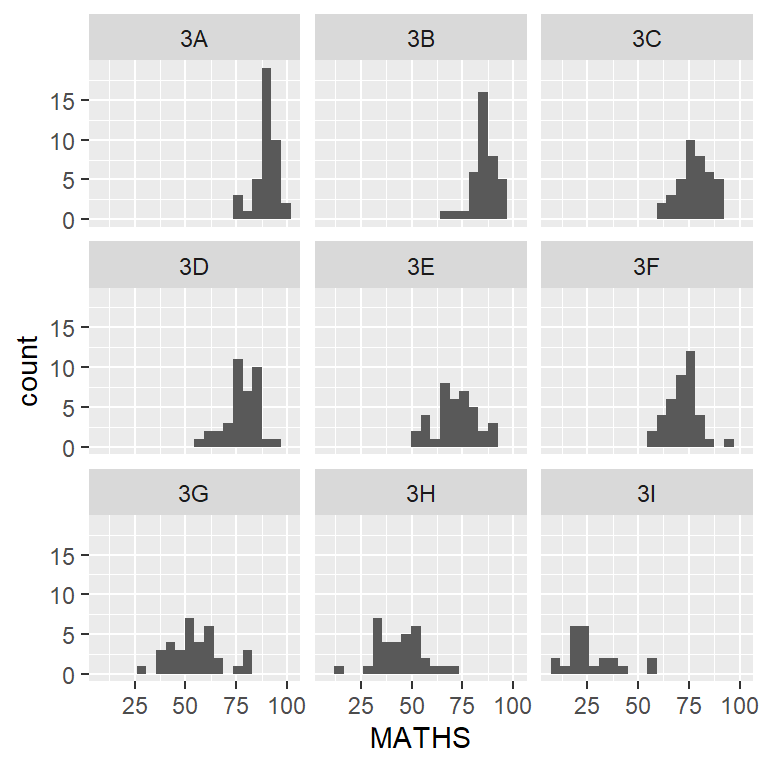

The code chunk below plots a trellis plot using facet-wrap().

Plot

Code

ggplot(data=exam_data,
       aes(x= MATHS)) +
  geom_histogram(bins=20) +
    facet_wrap(~ CLASS)

facet_grid() function

• [facet_grid()] forms a matrix of panels defined by row and column facetting variables.

• It is most useful when you have two discrete variables, and all combinations of the variables exist in the data.

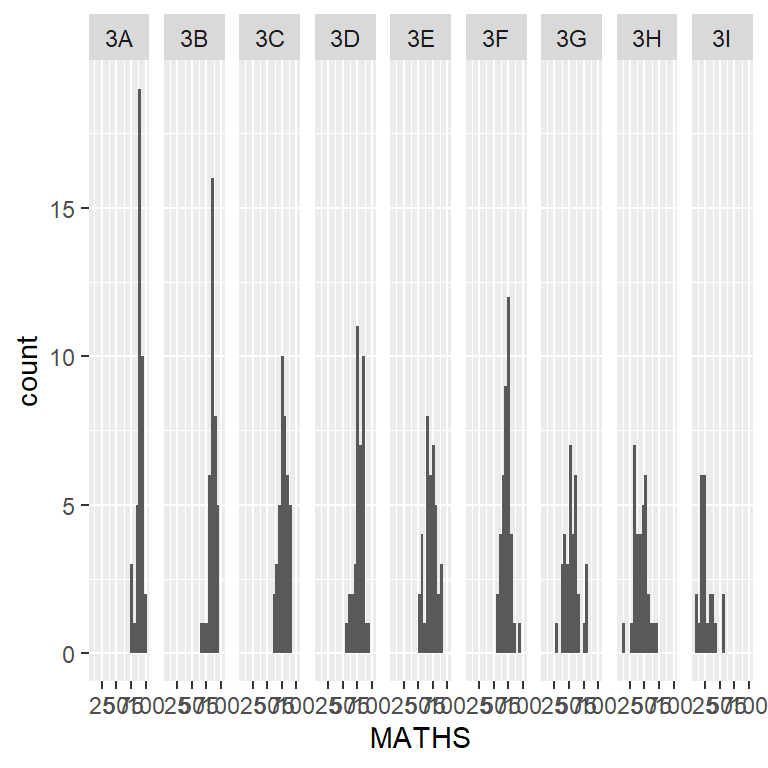

The code chunk below plots a trellis plot using facet_grid().

Plot

Code

ggplot(data=exam_data,
       aes(x= MATHS)) +
  geom_histogram(bins=20) +
    facet_grid(~ CLASS)

Coordinates

• The Coordinates functions map the position of objects onto the plane of the plot.

• There are a number of different possible coordinate systems to use, they are:

  • [coord_cartesian()]: the default cartesian coordinate systems, where you specify x and y values (e.g. allows you to zoom in or out).
  • [coord_fixed()]: a cartesian system with a “fixed” aspect ratio .
  • [coord_quickmap()](: a coordinate system that approximates a good aspect ratio for maps.

By the default, the bar chart of ggplot2 is in vertical form.

Plot

Code

ggplot(data=exam_data,
       aes(x=RACE)) +
  geom_bar()

The code chunk below flips the horizontal bar chart into vertical bar chart by using coord_flip().

Plot

Code

ggplot(data=exam_data,
       aes(x=RACE)) +
  geom_bar() +
  coord_flip()

How to change to the y- and x-axis range?

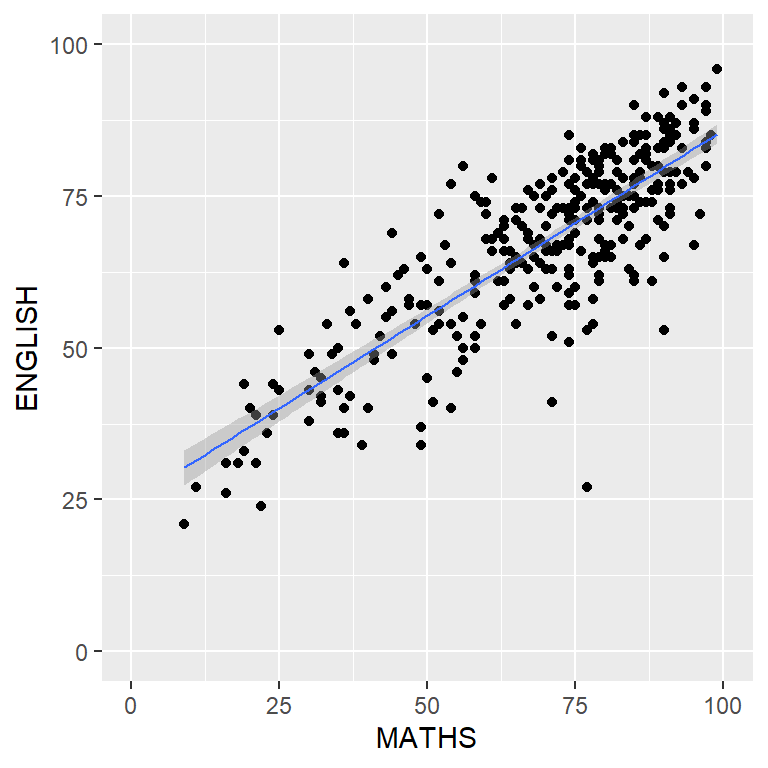

The code chunk below fixed both the y-axis and x-axis range from 0-100.

Plot

Code

ggplot(data=exam_data,
       aes(x= MATHS, y=ENGLISH)) +
  geom_point() +
  geom_smooth(method=lm,
              size=0.5) +
  coord_cartesian(xlim=c(0,100),
                  ylim=c(0,100))

Themes

• Themes control elements of the graph not related to the data. For example:
  • background colour
  • size of fonts
  • gridlines
  • colour of labels
• Built-in themes include:
  • theme_gray() (default)
  • theme_bw()
  • theme_classic()
• A list of theme can be found at this link.
• Each theme element can be conceived of as either a line (e.g. x-axis), a rectangle (e.g. graph background), or text (e.g. axis title).

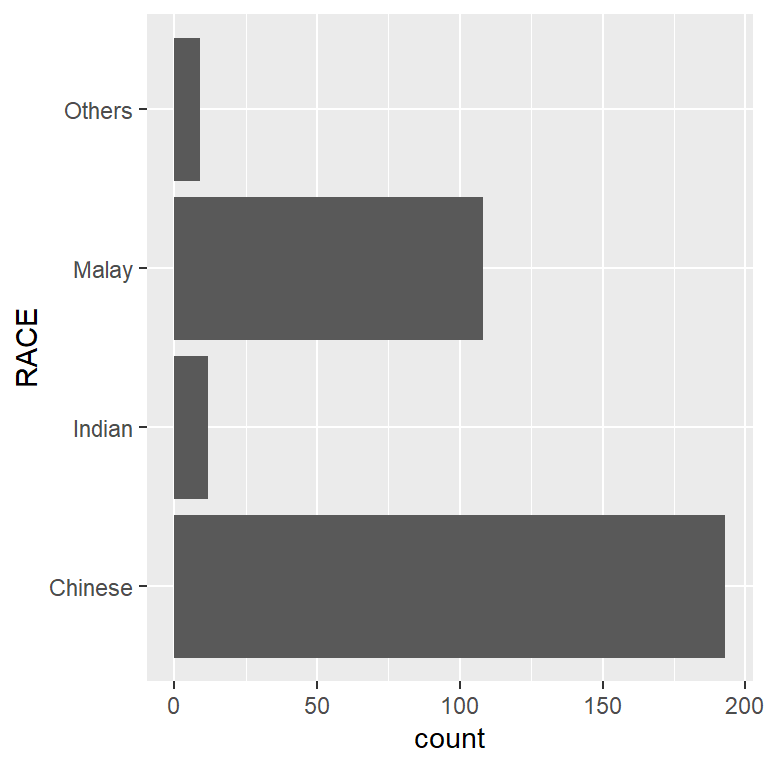

The code chunk below plot a horizontal bar chart using theme_gray()

Plot

Code

ggplot(data=exam_data,
       aes(x=RACE)) +
  geom_bar() +
  coord_flip() +
  theme_gray()

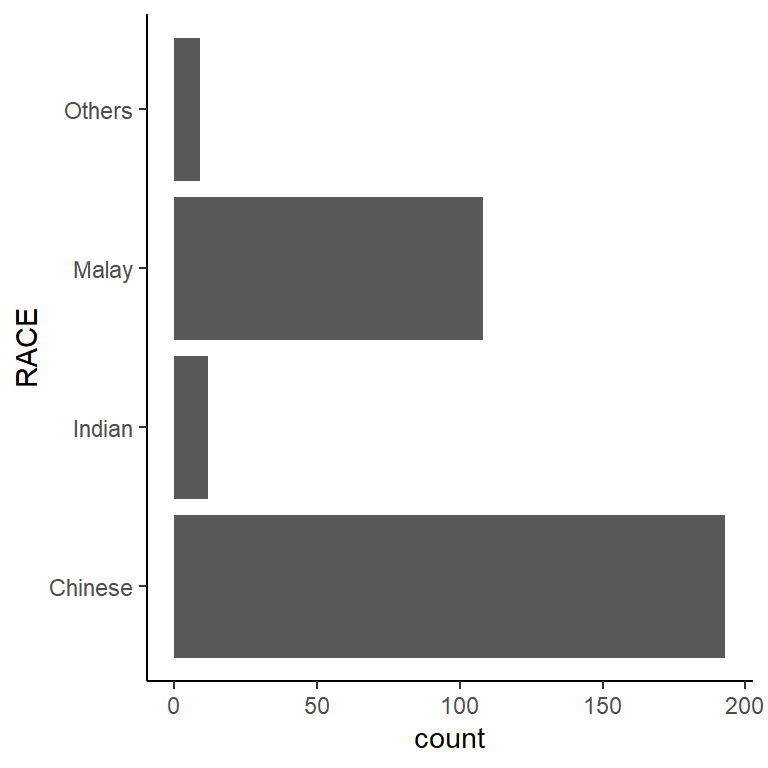

A horizontal bar chart plotted using theme_classic().

Plot

Code

ggplot(data=exam_data,
       aes(x=RACE)) +
  geom_bar() +
  coord_flip() +
  theme_classic()
